Assembling your Coffee Cup Stirling Engine Kit

Home > Stirling Store: Engines > MM-5 Coffee Cup Engine Kit > Online Instructions > Initial Crankcase Assembly

Table of Contents

Instructions Home Page
What You Will Need
For Perfectionists Only
Take Inventory
Initial Crankcase Assembly
Displacer Assembly
Cylinder Assembly
Piston Assembly
Air Leak Test
Read/Add Customer Comments
Download .pdf

Crankcase Assembly:

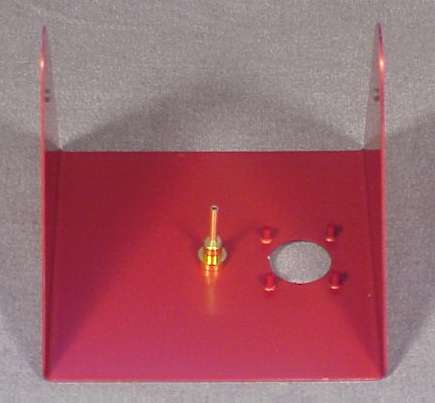

1) Locate the Crankcase [C1] and Short Brass Tube [C5]. Carefully apply a small bit of adhesive to the outside of one end of the Brass Tube, and insert into the Crankcase as shown. Be careful that no adhesive gets into the inside of the Brass Rod. Set the Crankcase Assembly aside to set/dry.
